New Albion Frame Drake Satin Brown

Note: If an item cannot be added to cart, it is out of stock.  Please check back for further availability.

An adventure touring frame built around 650b/27.5" tires. Stable enough medium duty touring and bikepacking, but also offers an enjoyable ride unloaded as well. The bottom bracket height is higher than your average touring bike or road bike, but not as high as a hardtail mountain bike to give some advantage riding off-road while still feeling steady loaded up

- Tange Infinity double butted CrMo steel main tubes; tapered CrMo rear tubes

- Fits racks and fenders

- Three sets of water bottle bosses

- Extra tall headtube makes upright builds look better

- Will handle tires up to 27.5 x 2.1" tires (42mm wide tires if using fenders)

- Designed for disc brakes (International Standard mount, 160mm rotors)

- Rear rack mounts

- Bottom bracket: PressFit PF30. We chose this spec, because it is compatible with eccentric bottom brackets which is needed by folks wanting to run a Rolhoff hub or other internal geared hub. You can also buy adapters, if you need to run cranks for threaded BB's

- Optional fork available: Lugged sloping crown, 50mm rake, low rider pannier braze-ons, double eyelets at dropouts (Frame is compatible with forks that have a 390-400mm axle to crown with 44 - 50mm rake/offset)

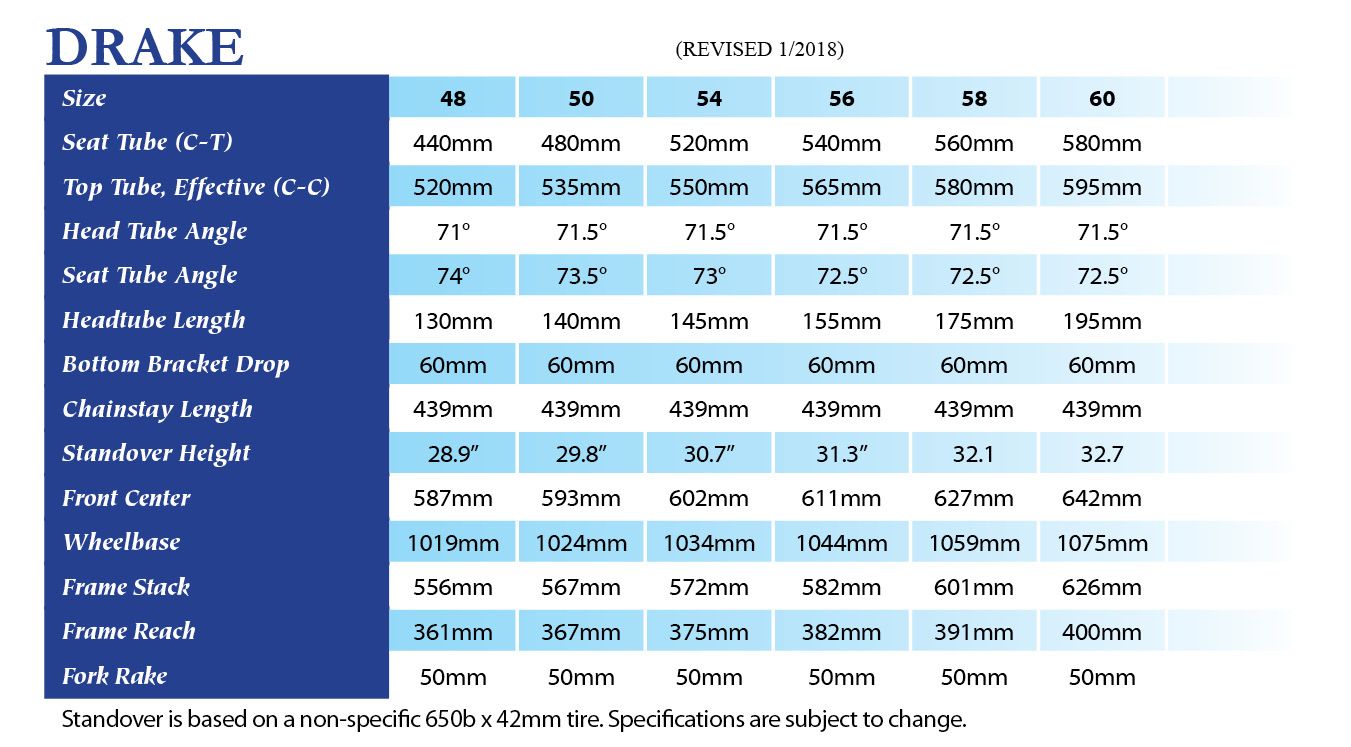

- Sizes: (Revised 1/2018) 48, 50, 52, 54, 56, 58, 60cm (Virtual sizing -- does not go by seat tube length)

- Paint: Satin Brown

- Part Requirements: Seatpost: 27.2mm OD, Seat Collar: 30.0mm Front derailleur: 28.6mm OD, Headset: 1-1/8", external cup, Rear hub: 135mm, Brakes: Disc, Bottom bracket: Press fit (PF30 / 46mm ID shell).
