Soma Frame Riff Blue (Belt-Drive)

https://www.merrysales.com//web/image/product.template/2408/image_1920?unique=d6ecbb9

589.99 589.99 USD 589.99

0.00

Not Available For Sale

  • Size

This combination does not exist.

• Please look over our  updated shipping terms
• "Add to Cart" button will not allow out-of-stock items to be ordered.

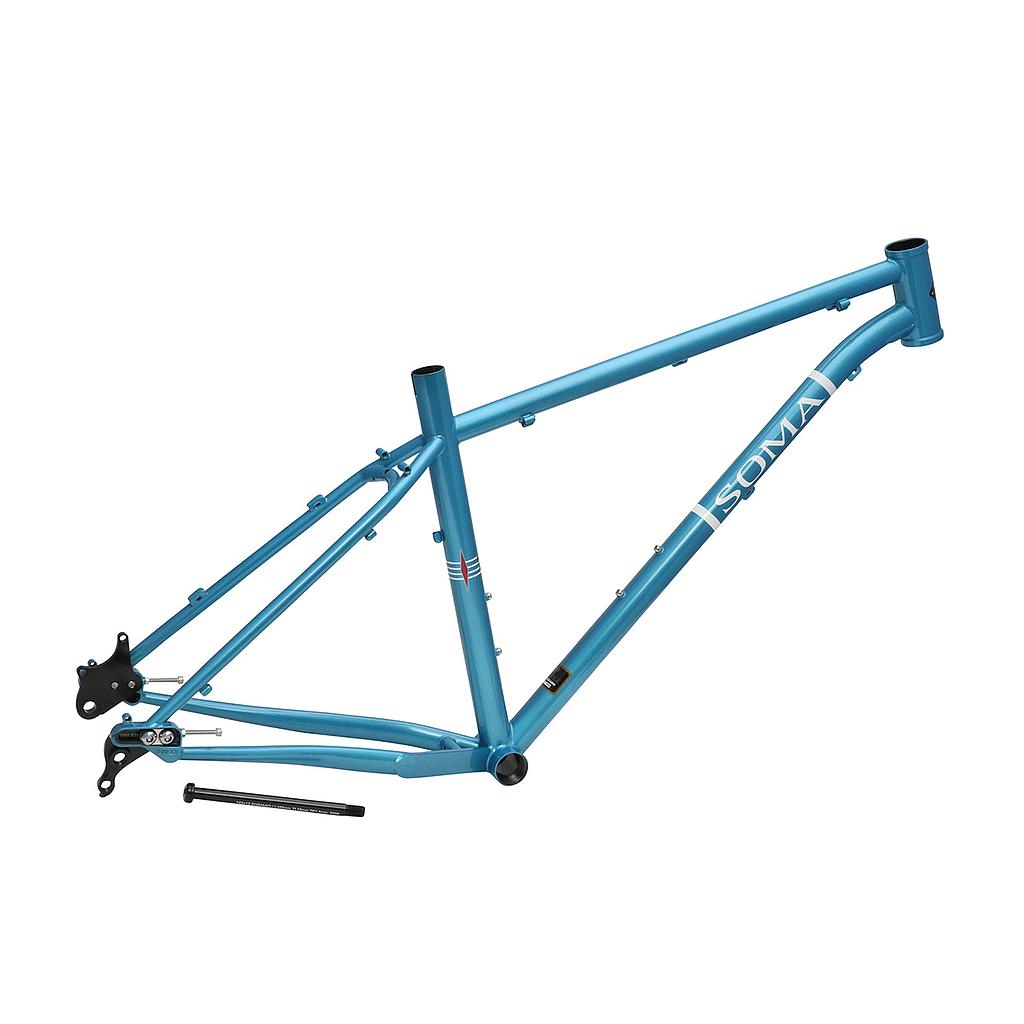

The Riff is our hardtail frame for 27.5″/650b wheels. It replaces the B-Side model. While the B-Side showed our tendency of keeping things old school, the Riff is modern without being trendy with the geometry and features. Tough Broski Sliding Dropouts allow you to go single-speed or geared or even run hub gears. Compatible with 12x142mm thru-axle hubs . A modified chainstay allows fitting even some double cranks with “plus size” 2.8″ wide tires without needing to invest in Boost parts. We even offer a belt-drive ready version. (*Belt-drive version works with regular chains as well)



– Tange Prestige heat-treated butted CrMo steel; butted CrMo rear end

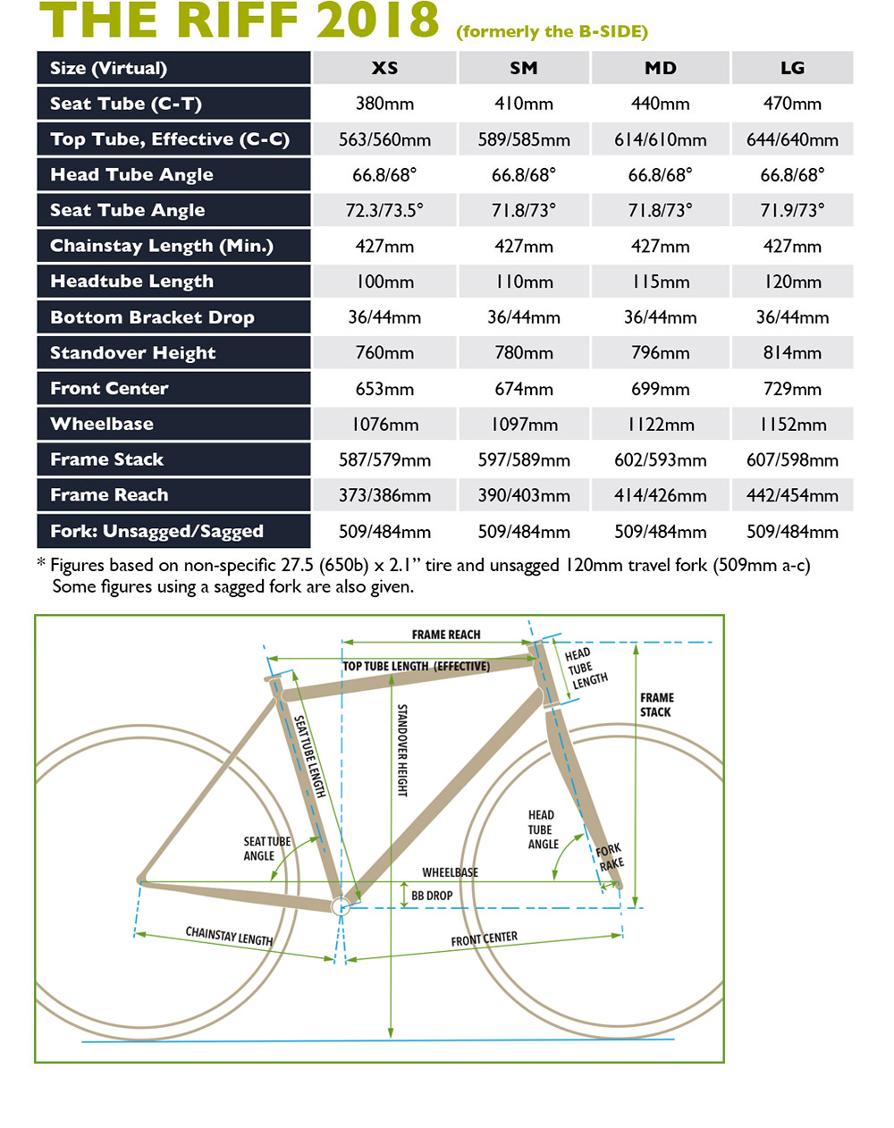

– Geometry is optimized for 100mm travel 27.5″ forks and will handle 120mm forks great too

– Disc brakes only (ISO tabs)

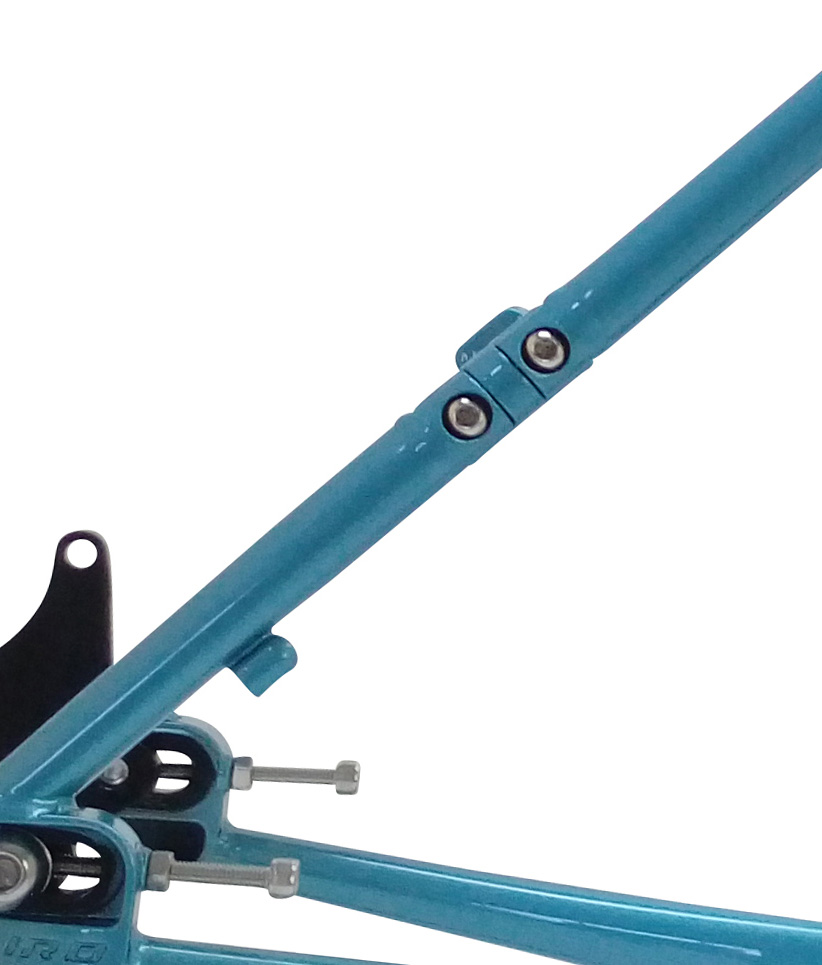

– Standard or Belt-Drive compatible versions available (split for installing belt is on the seatstay.)

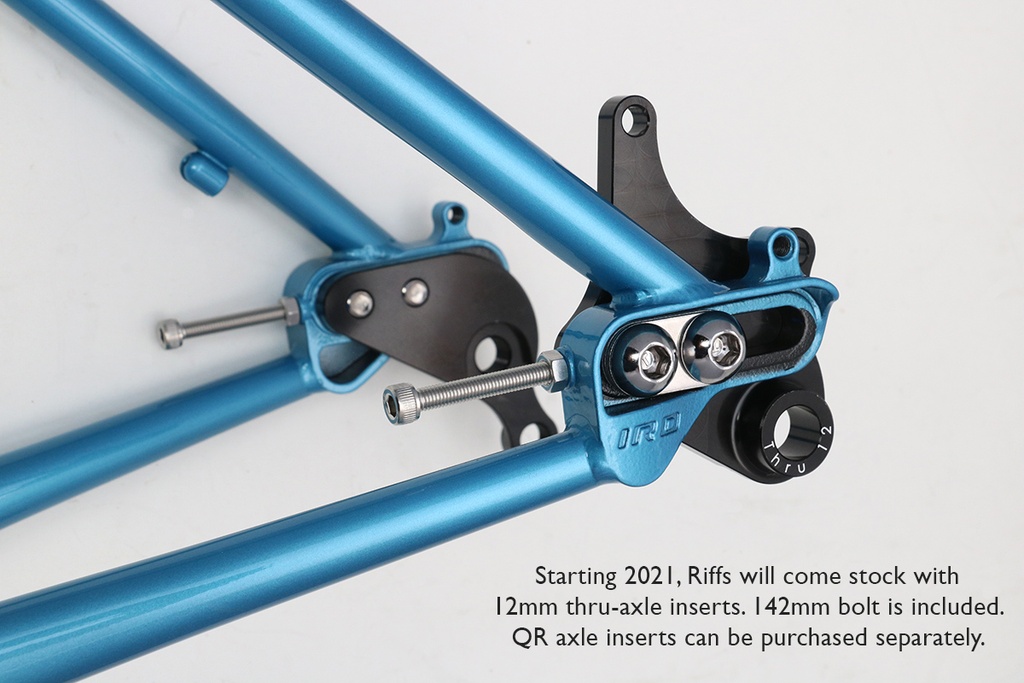

– IRD Broski Sliding Dropouts allows geared and single-speed builds with easy wheel removal

– These come ready for 142 x 12mm Thru-Axle hubs. (Can be converted to 135mm spacing for traditional QR hubs with IRD aftermarket inserts)

– S-bend seatstays and chainstays

– Rear rack and fender eyelets

– CNC-machined 44mm headtube: Will take 1-1/8″ steerers with a ZeroStack 44 headset or tapered steerers with a ZS44 upper assembly and external cup (EC44) lower assembly

– 31.6mm post size/34.9mm frt. der. size/34.9mm seat collar(not included), 400mm(or longer) post recommended.

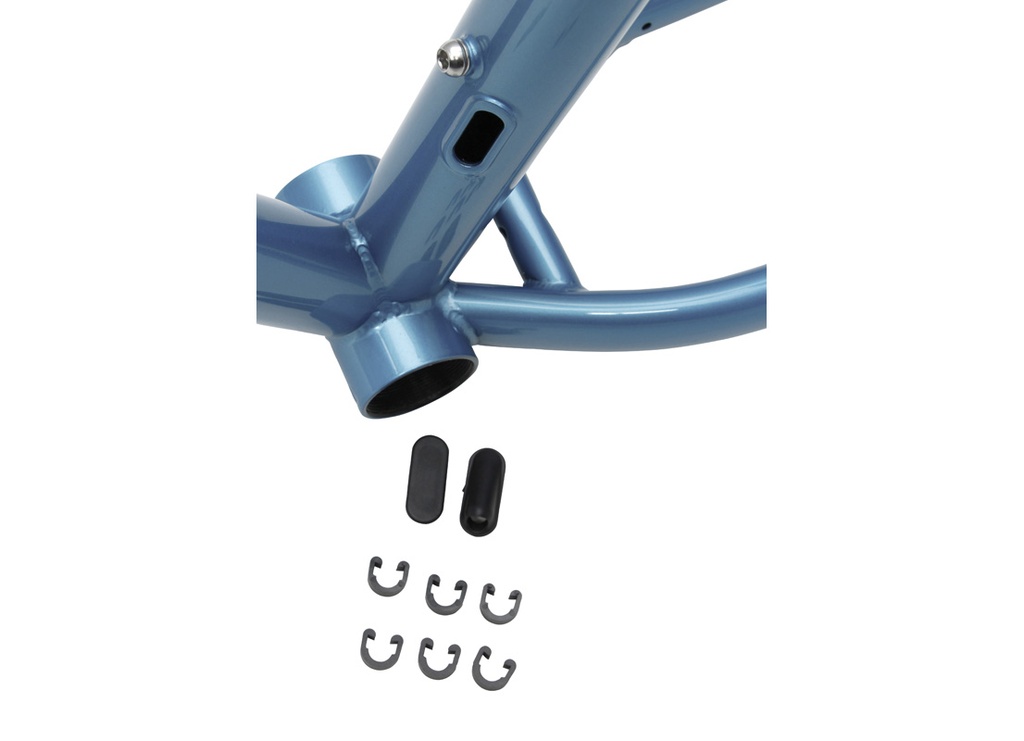

– Dropper post cable routing runs on downtube and inside the seat tube

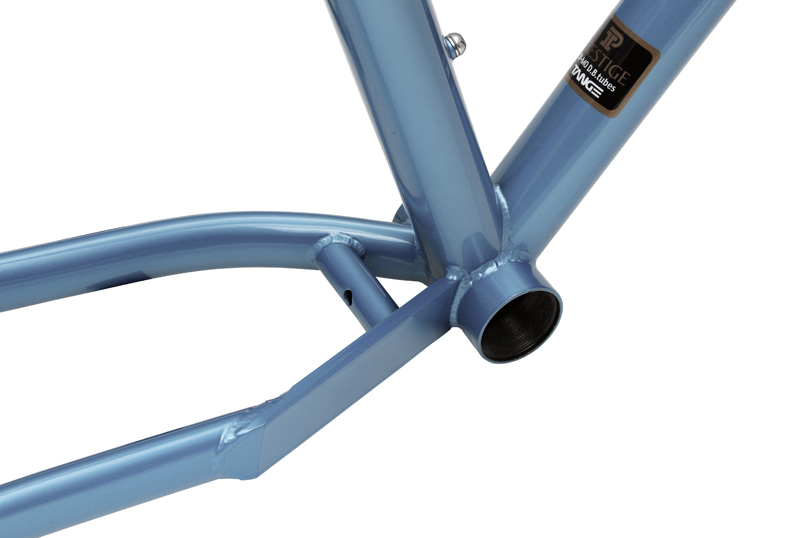

– 73mm bottom bracket (English threads);

– Recommended tire size: 27.5 x 1.95″ – 2.8”

– Color: Pelham Blue

– Wt: 5.35 lbs.

– Sizes: XS(38cm), SM(41cm), MD(44cm), LG(47cm)
